A Ridley Scott film made at Shepperton Studios

Face Hugger with fine plasticized skin. The impression for the tail was taken from a snake skin.

Flexible mould for Face hugger .jpg

Mould making materials

Flexible mould for the Face Hugger`s body.

Andrew used PVC polyol, cooked to a plastized state, which accurately reproduced fine bone structures found in various natural skeletons.

Rigid bones etc, could then be cast into the flexible moulds. Various materials such as glass reinforced Polyester and Polyurethanes were used to create the final piece.

Alien-Face-Hugger B & W .jpg

Fingers were individually sculpted and hollowed out before pre- assembly.

Each finger had articulating knuckles with a wire connected to the pneumatic actuator.

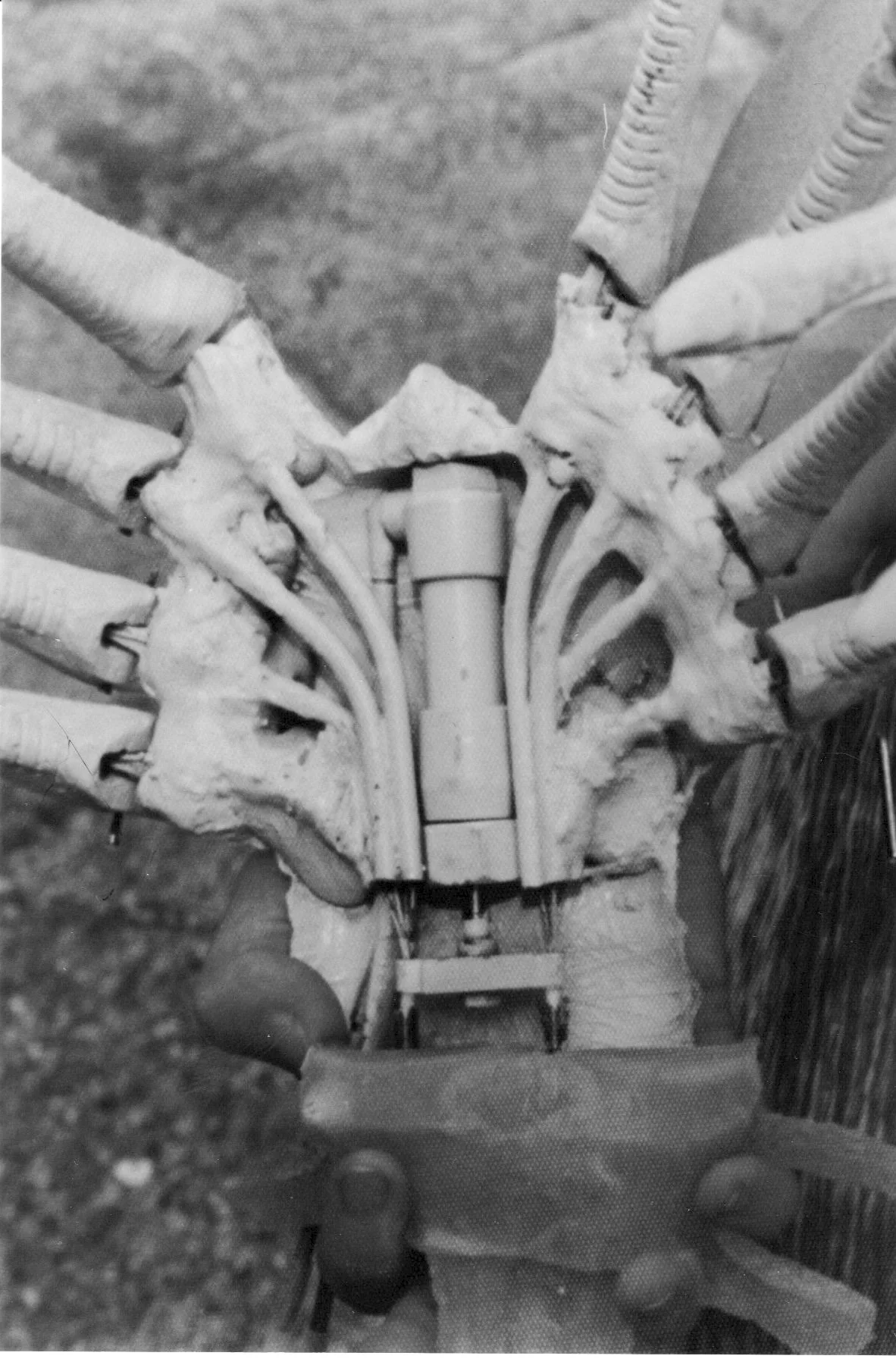

Alien Face Hugger  underside  .jpg

A pneumatic compressed air actuator was used to pull & push the finger wires.

The result was that the face hugger could walk in a crabbing style and clamp onto any unsuspecting being, inserting its eggs into whatever orifice it could find…….gruesome….

Alien - Head .jpg

Alien`s head

Andrew making Alien`s head.

Pushing the boundaries of vacuum forming on one of Andrew`s bespoke Vacuum Forming machines.

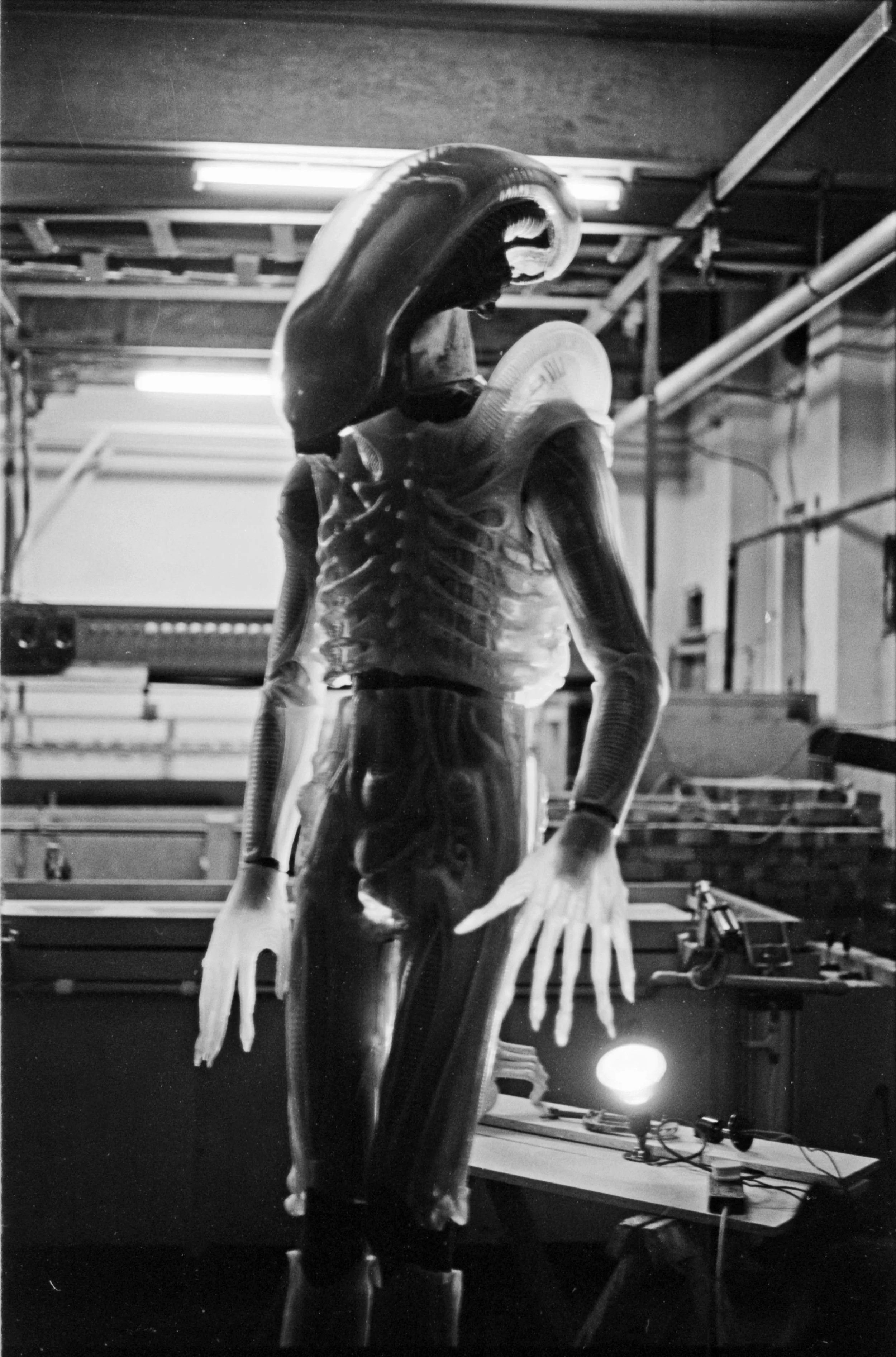

Alien Translucent body .jpg

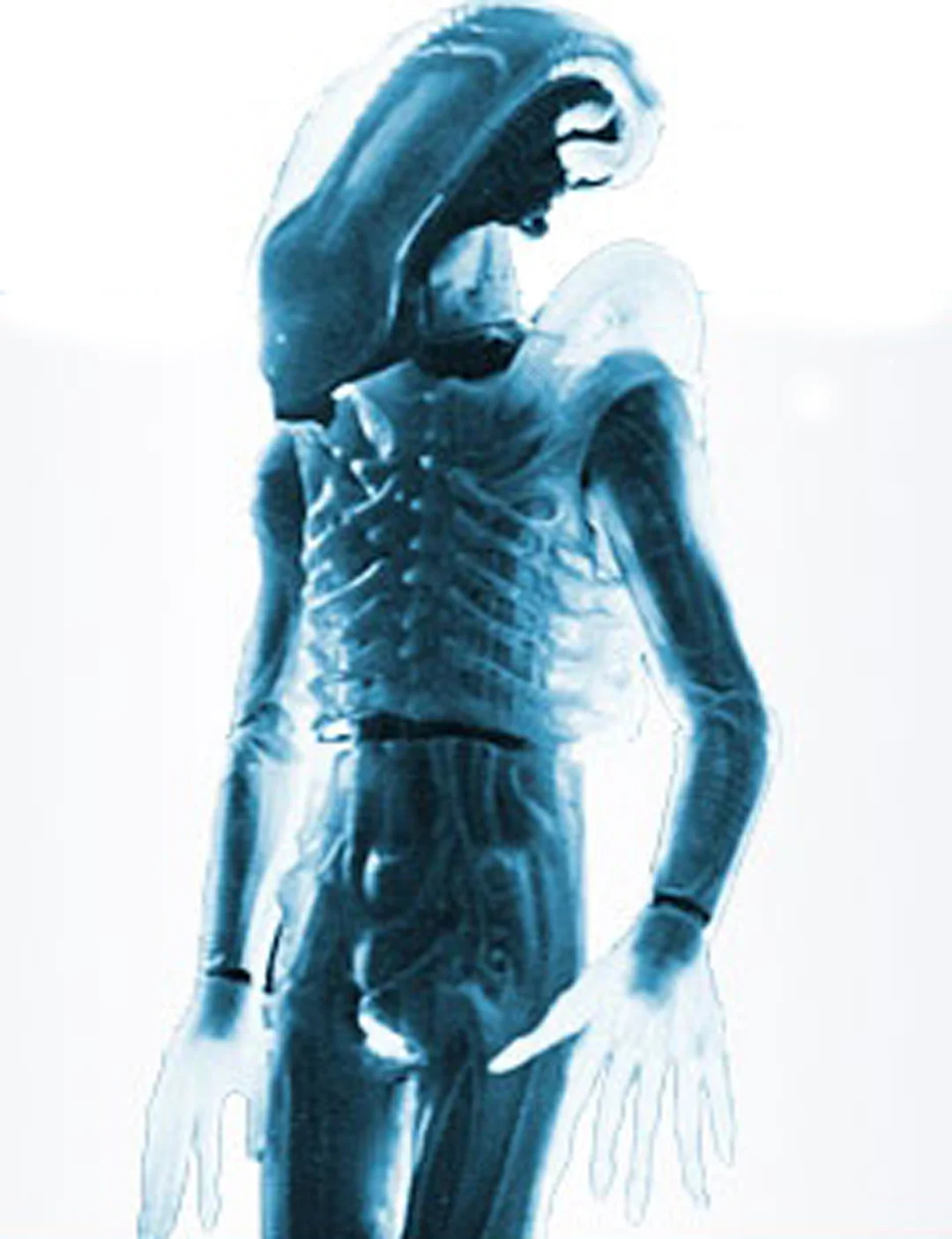

Giger`s concept

Giger`s concept of a monster that was translucent, showing all internal organisms,was a tall order for Andrew.

To develop a material and invent a moulding process in the space of the time scale of a film shoot, was always going to be challenging.

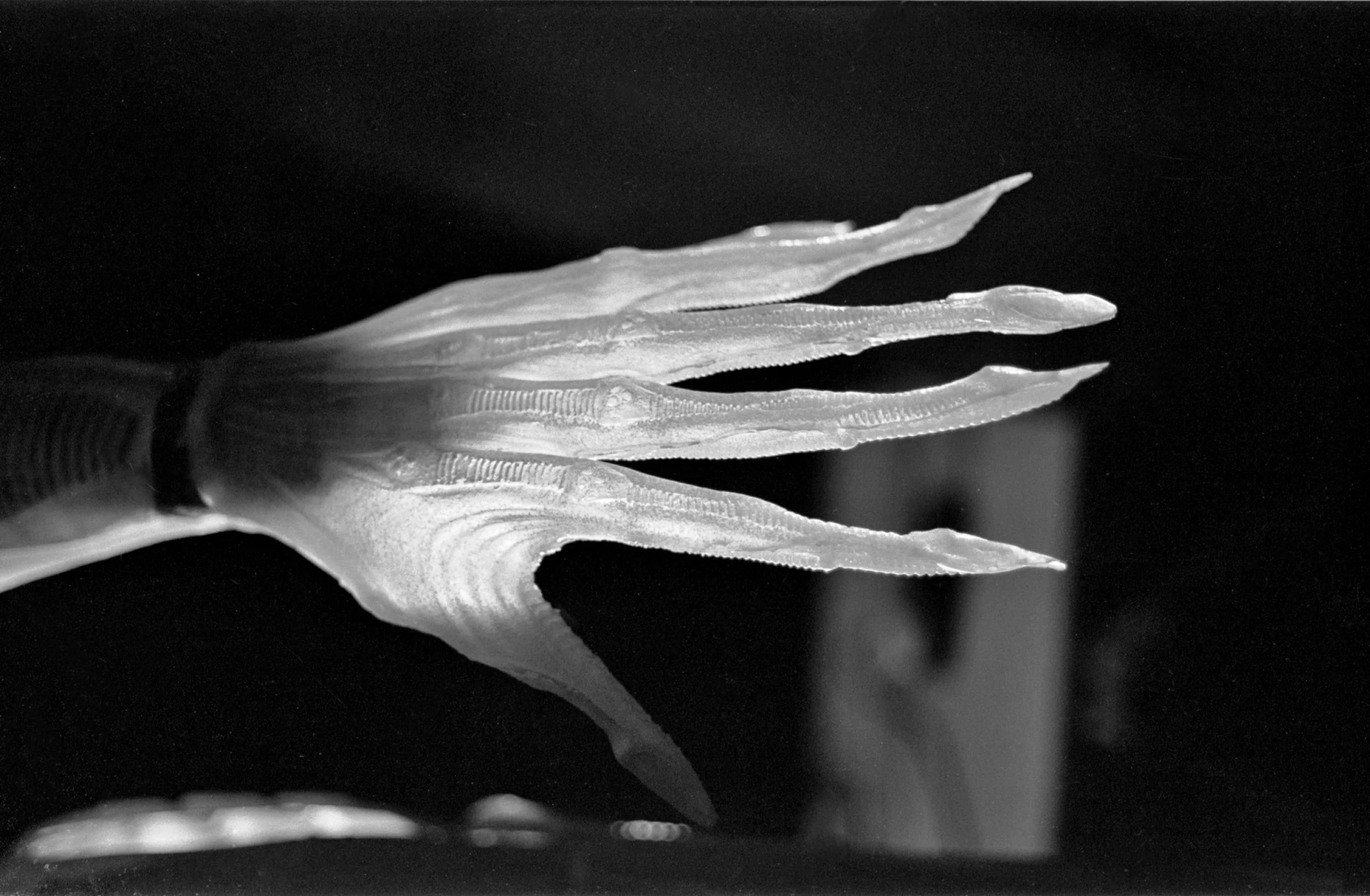

Alien  Hand  .jpg

Alien`s hand had extended claw like fingers.

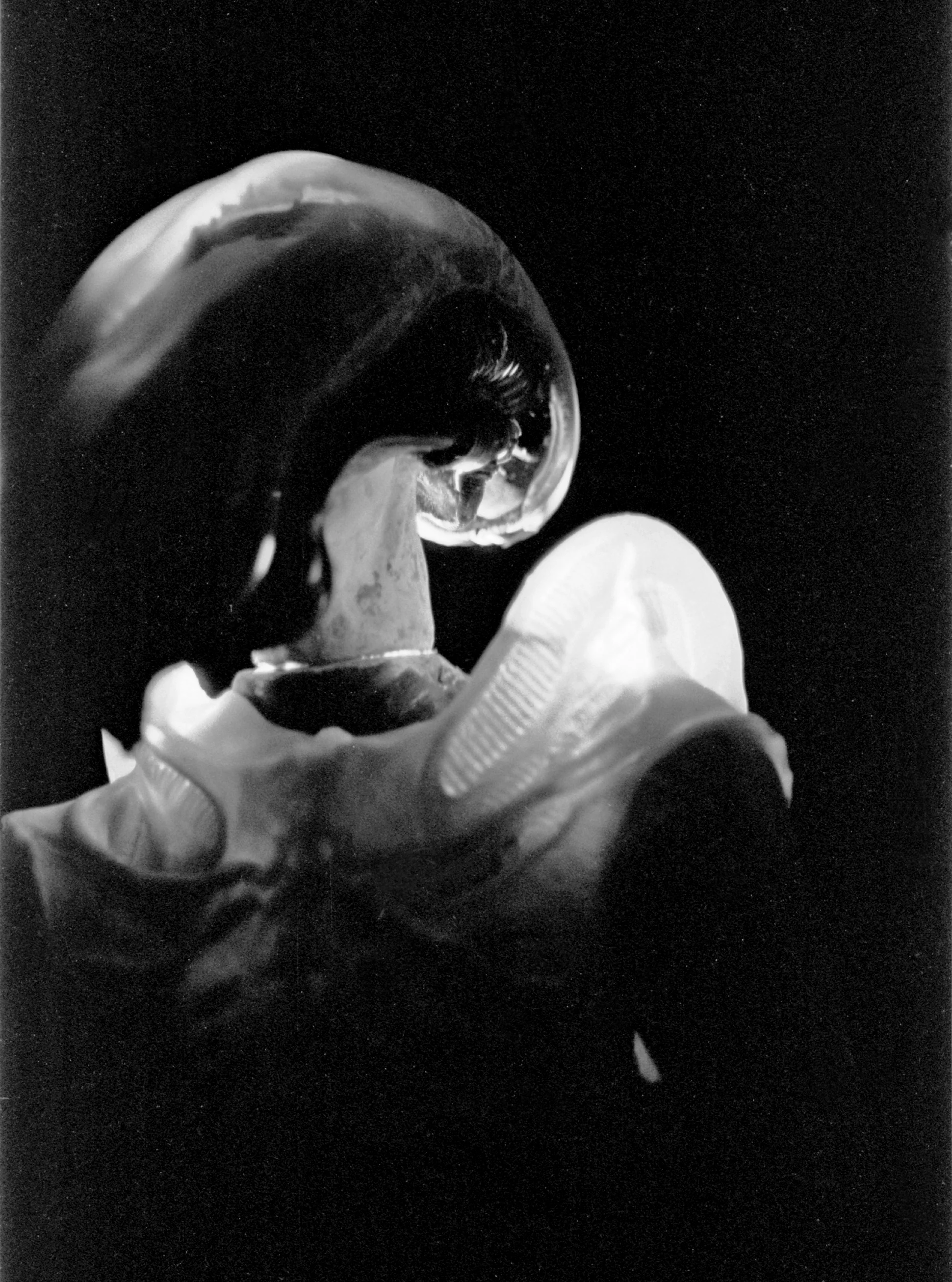

Alien Upper body  .jpg

The Alien was head and shoulders above everyone else.

Alien Legs & Face Hugger  .jpg

Andrew developed a translucent flexible material that he also used for the` Face Hugger.`

He built a large electrically heated rotisserie oven with a rail tracking system to wheel in the monster.

Even the making of this monster was a weird `Frankinstein` like experience.

Alien complete  jpg.jpg

A very tall Massai Warrior from Kenya was the actor engaged to be inside the Alien costume.

Alas,the tear strength of the material was not adequate in time for the shoot.

Ridley Scott ( director) said OK, let`s go without the monster, it might even add to the suspense.

Indeed it did, because you never saw the monster in the original Alien film.

Foot  with tear strength  .jpg

Production problems

Andrew struggled to get the tear strength in the Alien material to be strong enough, but at the eleventh hour, Andrew actually solved the tear strength problem.

A contingency from the production company, including Ridley Scott came for a final showdown to Andrews workshop.

In a jovial and triumphant manner, Andrew slapped Garth Thomas ( production accountant) across his impressive chest with the Alien`s foot made from the new super strong material.

Alas, Andrew picked up the wrong piece of material, and it shattered.

Its` a wrap !!! was the exclamation, and Ridley decided to go without it. A brilliant decision that only increased the suspense in the film.

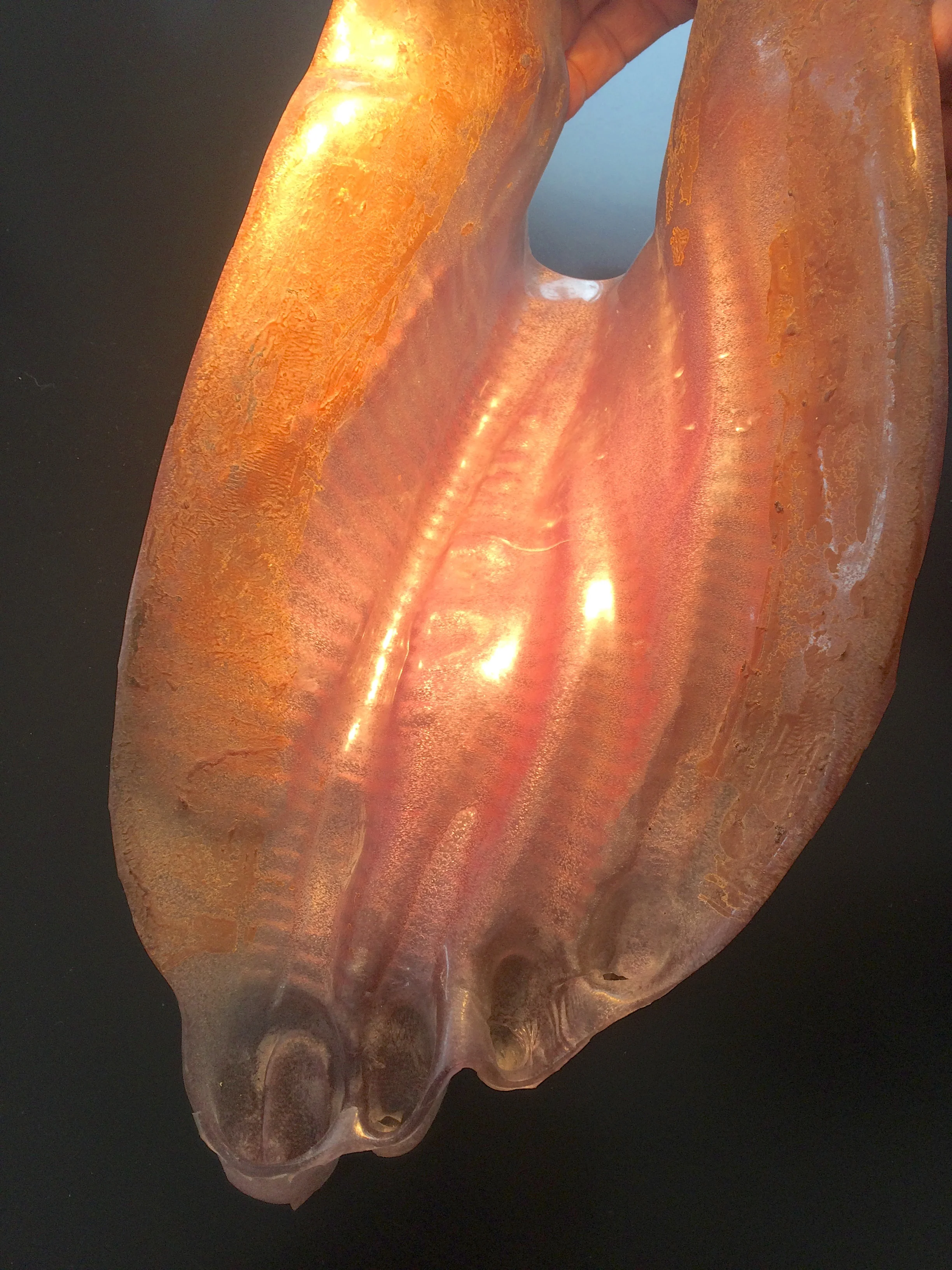

Backside of foot 5.jpg

Andrew`s secret method of getting the tear strength acceptable was to vacuum form a film of plasticed PVC into the back of the Alien`s skin material, whilst still in its` hot and semi molten state. The two material cross polymerised and fused together.

This sample is still super strong now, nearly 40 years later. It would have made a super surreal monster just as Giger envisaged.

Andrew ended up making two Alien monsters, one he gave to Giger to take back home to Switzerland, and the other was kept by Andrew.

None were used in the production.

Giger`s book 1 .jpg

Giger`s book

Both Andrew and Giger were disappointed with no monster in the film, but it was a sterling effort that did not quite come off, and so Giger gave Andrew the copy of his book that was used as reference for all work on the film.

The book is signed...

`For Andrew....H R Giger 78

with a little doodle from Giger`s friend Salvador Dali.

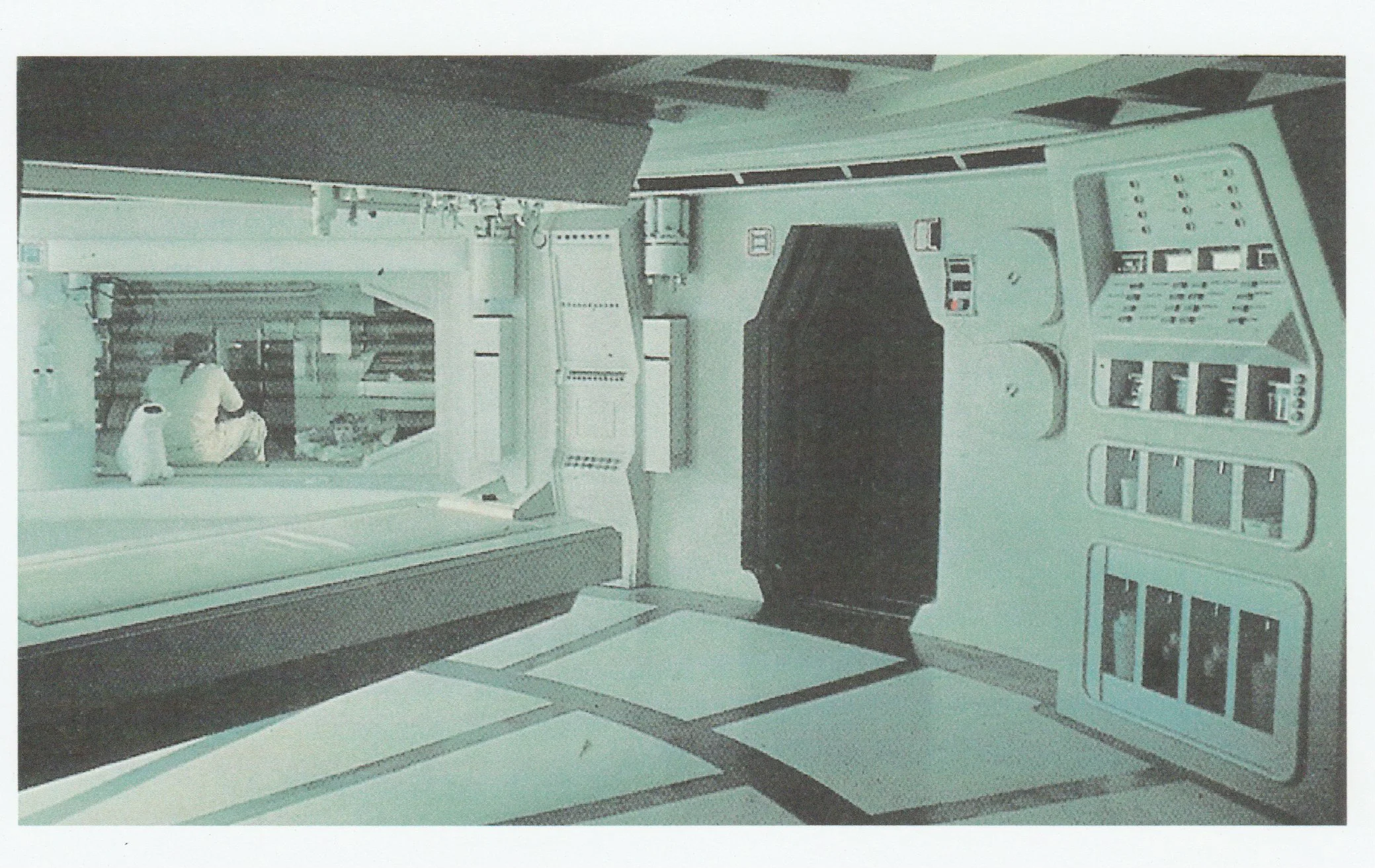

Alien - crew quarters 1.jpg

Vacuum formed film sets

`The Crew`s quarters`

Andrew made film sets which incorporated many vacuum formed panels.

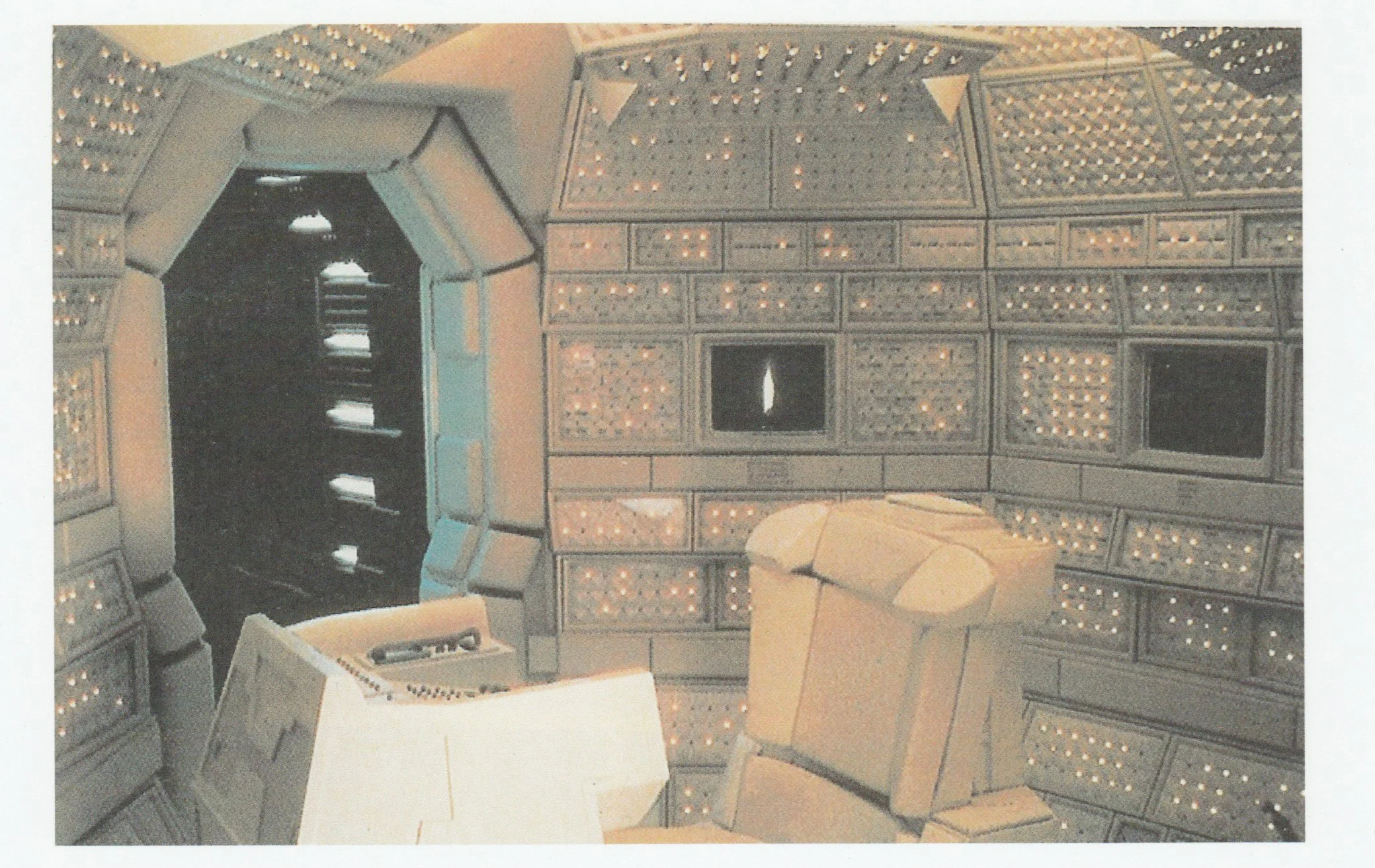

Alien - control capsual.jpg

`Control Capsule`

This set looks really complicated with a thousand LED`s, However since they were not invented, the set comprises of vacuum formed panels with hundreds of holes drilled in them. Lit from behid the impression was that of thousands of lights.

To make them flicker, just wave a wand behind the panels.

Alien  Credit note 2.jpg

Credit Note for invoice 347 ...Alien monster

Andrew was not a member of the Union that operated in the film industry, and so the terms by which he got the work were...

If it doesn`t don`t pay for it.

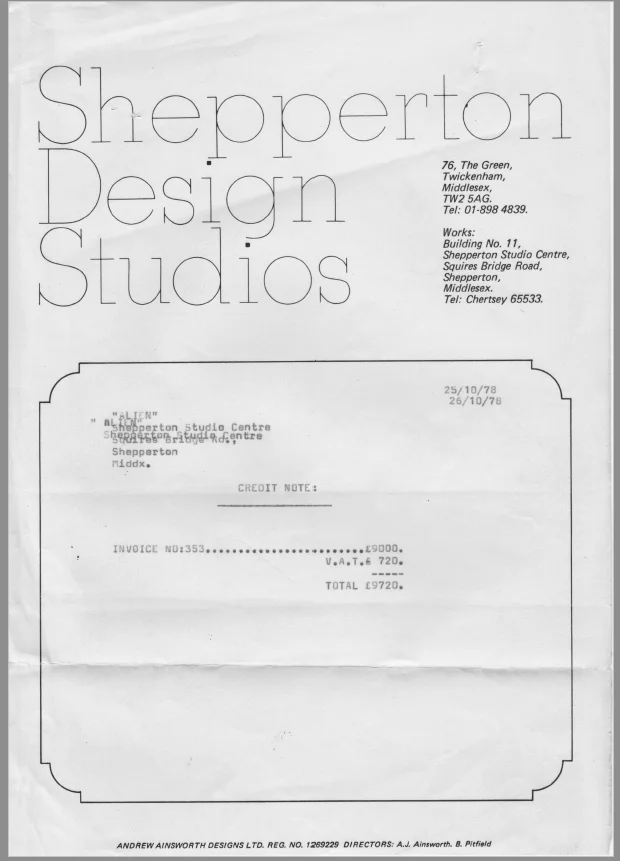

Alien  Credit Note.jpg

Credit Note for invoice 353....Alien monster

Not only were Giger and Andrew disappointed that the material was not strong enough and the monster was not used in the film, the total cost of creating a material and process to make the monster was also lost.

Tough business, prop making.
